現貨供應pop 1600 2500 3400氣動鉚釘槍料號大全

來源：未知　發布時間：2020-08-09

pop 1600氣動鉚釘槍料號

PRN414 Nosepiece 4 size DPN900-011 O-Ring
PRG402-8A Jaws DPN900-012 O-Ring
DPN239-006 Jaw Guide DPN239-068 J Valve Rod
DPN239-007 Pulling Head DPN239-069 EXT Silencer
DPN239-008 Jaw Guide Lock DPN900-013 O-Ring
DPN239-009 Nose Housing DPN239-071 Valve Stopper
DPN900-001 O-Ring DPN239-120 Fitting
DPN239-011 Nose Housing Nut DPN239-121 Air Tube
DPN239-144 Jaw Pusher FAN239-074 S.V Case Assembly
DPN901-001 Jaw Pusher Spring DPN900-014 O-Ring
DPN901-002 Spring DPN902-001 Retaining Ring
DPN239-018 Spring Receiver DPN239-078 S Valve Rod
DPN239-019 Hydraulic Piston DPN906-001 Button Hd Cap Screw
DPN239-020 Housing Adapter DPN239-150 Trigger
DPN900-002 O-Ring DPN239-083 Connect Tube
DPN239-022 Rod Seal Case DPN900-015 O-Ring
DPN908-001 Scraper DPN239-151 Handle Assembly
DPN900-003 O-Ring DPN907-001 Socket Hd Cap Screw
DPN908-002 B.U-Ring DPN239-086 Hexagon Nut
DPN908-003 Penta Seal DPN907-004 Socket Hd Cap Screw
DPN908-004 B.U-Ring DPN900-016 O-Ring
DPN900-004 O-Ring DPN239-089 Plug
DPN239-029 Handle Upper DPN907-003 Socket Hd Cap Screw
DPN901-003 Return Spring DPN239-091 Chamber
DPN900-005 O-Ring DPN239-126 R Joint Spacer
DPN239-111 MCS Valve Rod DPN239-093 R Joint
DPN239-112 MCS Cap DPN239-127 R Joint Adapter
DPN239-034 End Cap Adapter DPN239-095 O S Slider
DPN900-019 O-Ring DPN900-017 O-Ringer
DPN239-036 Slider DPN239-097 O S Joint
DPN239-181 Hook FAN239-166 Collector Assembly
DPN239-153 End Cap DPN239-098 Collector Lock Collar
DPN239-116 Collar DPN900-018 O-Ring
DPN239-154 Collar Screw DPN903-001 Flat Head Cap Screw
DPN239-118 Ejector Guide DPN239-155 Collector Lock
DPN900-006 O-Ring DPN239-130 Collector Body
DPN907-002 Socket Hd Cap Screw DPN900-020 O-Ring
DPN239-119 End Cap Plate DPN239-168 Collector Silencer
FAN239-043 Ejector Assembly DPN239-156 Collector End
DPN239-108 Packing DPN239-167 Collector End Cap
DPN239-047 Fill Screw DPN239-152 Collector End Nut
DPN900-007 O-Ring DPN900-021 O-Ring
DPN900-008 DPN239-163 Deflector Adapter
DPN900-009 DPN900-022 O-Ring
DPN239-147 Sleeve Upper PRG510-56 Deflector
DPN239-052 Upper Plate FAN239-176 Jaw Pusher Assy
DPN239-053 Sleeve Lower FAN239-157 Air Line Assembly
DPN908-005 Penta Seal DPN239-158 Air Line
DPN908-006 B.U-Ring DPN239-159 Air Line Fitting
FAN239-148 Handle Lower Assy DPN239-160 Hose Female Fitting
FAN239-059 Air Piston Assembly PRG540-45 O-Clamp (0911)
DPN900-010 O-Ring PRN314 Nosepiece 3 size
DPN239-063 Sleeve Lock Nut PRN514 Nosepiece 5 size
DPN239-064 Bottom Plate DPN239-139 HS Screw key - M4
DPN239-065 J Valve Cap

pop 2500氣動鉚釘槍料號

PRN614 槍鼻 DPN239-069 EXT 消音器
13300 爪片 DPN239-071 閥塞
DPN275-001 導爪 DPN239-120 接頭
DPN275-002 拉頭 DPN239-121 氣管
DPN275-003 導爪鎖 FAN239-074 S.V殼組件
DPN275-004 槍鼻套 DPN900-014 O型圈
DPN900-027 O型圈 DPN902-001 扣環
DPN275-005 槍頭套螺母 DPN239-078 S閥桿
DPN275-027 爪推 DPN906-001 圓頭帶帽螺釘
DPN901-005 爪推彈簧 DPN239-150 扳機
DPN901-006 彈簧 DPN239-083 連接管
DPN275-006 彈簧接收器 DPN900-015 O型圈
DPN275-007 液壓活塞 DPN239-151 手柄組件
DPN275-008 接合器 DPN907-001 Hd牙槽帶帽螺釘
DPN900-024 O型圈 DPN239-086 六邊形螺母
DPN275-009 活塞桿密封套 DPN907-004 Hd牙槽帶帽螺釘
DPN908-007 刮板 DPN900-016 O型圈
DPN900-029 O型圈 DPN239-089 塞子
DPN908-006 B.U圈 DPN907-003 Hd牙槽帶帽螺釘
DPN908-005 五邊形密封圈 DPN275-021 氣缸
DPN908-008 B.U圈 DPN239-126 R連接墊片
DPN900-028 O型圈 DPN239-093 R接頭
DPN275-010 手柄上部 DPN239-127 R連接墊片
DPN901-007 回位彈簧 DPN239-095 OS滑塊
DPN900-005 O型圈 DPN900-017 O型圈
DPN239-111 MCS閥桿 DPN239-097 OS接頭
DPN275-031 MCS蓋 FAN275-035 收集瓶組件
DPN275-032 端蓋接口 DPN239-098 收集瓶鎖環
DPN900-019 O型圈 DPN900-018 O型圈
DPN275-033 滑塊 DPN903-001 平頭帶帽螺釘
DPN275-037 掛鉤 DPN239-155 收集瓶鎖
DPN239-153 端蓋 DPN275-036 收集瓶
DPN239-116 卡圈 DPN900-020 O型圈
DPN239-154 卡圈螺釘 DPN239-168 收集瓶消音器
DPN275-034 噴射器導頭 DPN239-156 收集瓶端口
DPN900-006 O型圈 DPN239-167 收集瓶端蓋
DPN907-002 內六角螺釘螺 DPN239-152 收集瓶端螺母
DPN239-119 端蓋板 DPN900-021 O型圈
FAN275-011 噴射器組件 DPN239-163 導向裝置接頭
DPN239-108 填充圈 DPN900-022 O型圈
DPN900-013 O型圈 PRG510-56 導向裝置接頭
DPN239-047 填充螺旋 FAN275-028 爪推組件
DPN900-007 O型圈 FAN239-157 氣管組件
DPN900-008 O型圈 DPN239-158 氣管
DPN900-009 O型圈 DPN239-159 氣管接口
DPN275-014 套筒上部 DPN239-160 凹形軟管接頭
DPN239-052 上板 PRG540-45 O-夾鉗(0911)
DPN239-053 套筒下部 PRN414 4號槍鼻
FAN275-015 手柄下部組件 PRN514 5號槍鼻
FAN275-018 氣動活塞組件 FAN275-022 外閥組件
DPN900-025 O型圈 DPN275-025 外閥頭
DPN239-063 套筒鎖緊螺母 DPN275-024 外閥殼
DPN239-064 底板 DPN901-008 外閥彈簧
DPN239-065 J 閥蓋 DPN900-030 O型圈
DPN900-011 O型圈 DPN275-023 外閥桿
DPN900-012 O型圈 DPN275-026 墊圈
DPN239-068 J 閥桿 DPN239-139 HS 螺絲扳手-M4

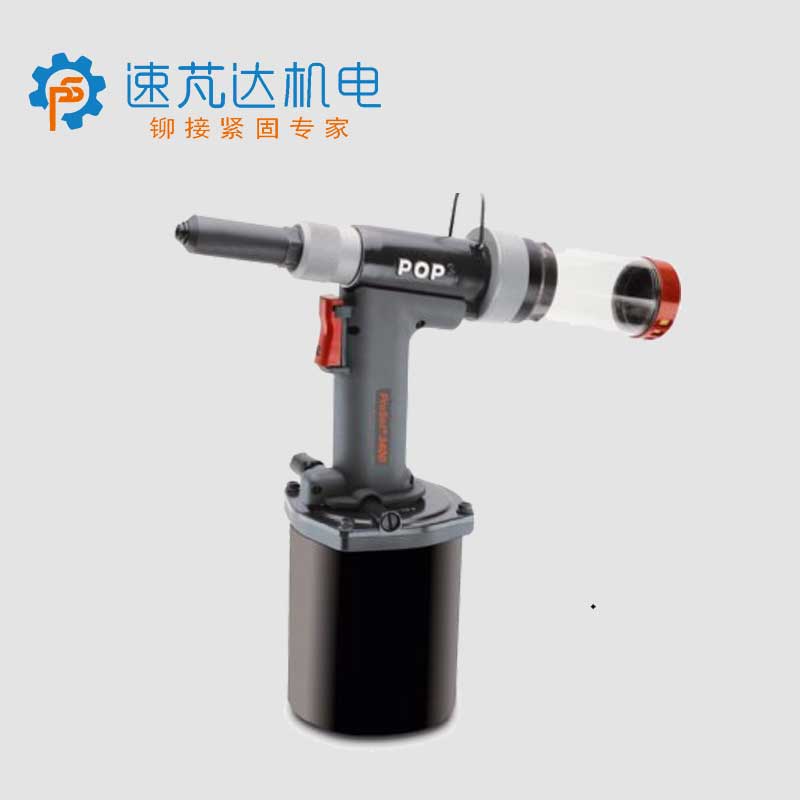

POP 3400 輕量級氣動鉚釘槍配件料號

pop3400氣動鉚釘槍料號

Designation Articleno. Designation Articleno.
PRN811 Nosepiece DPN900-030 O-Ring
PRG540-44 Jaws DPN900-072 O-Ring
DPN276-001 Jaw Guide DPN276-039 Tube Seal Case
DPN276-002 Pulling Head FAN276-040 Tube Assembly
DPN276-003 Jaw Guide Lock DPN276-043 Sleeve Lock Nut
DPN276-004 Nose Housing DPN276-044 Bottom Plate
DPN900-059 O-Ring DPN276-045 J Valve Cap
DPN276-005 Nose Housing Nut DPN900-073 O-Ring
DPN276-006 Jaw Pusher DPN900-012 O-Ring
DPN900-060 O-Ring DPN900-074 O-Ring
DPN901-019 Jaw Pusher Spring DPN900-035 O-Ring
DPN901-020 Spring DPN276-046 J Valve Rod
DPN276-007 Pulling Head Joint DPN239-069 EXT Silencer
DPN276-008 Hydraulic Piston DPN900-075 O-Ring
DPN276-009 Spacer Pipe DPN900-076 O-Ring
DPN276-010 Housing Adapter DPN276-047 J Valve Fitting
DPN900-061 O-Ring DPN276-048 H.L Fitting
DPN276-011 Rod Seal Case DPN276-049 Air Tube
DPN908-015 Scraper DPN239-120 Fitting
DPN900-062 O-Ring FAN239-074 S Valve Case Assembly
DPN908-021 B.U-Ring DPN900-014 O-Ring
DPN908-022 Penta Seal DPN902-001 Retaining Ring
DPN900-063 O-Ring DPN239-078 S Valve Rod
DPN908-023 B.U-Ring DPN906-001 Button Head Cap Screw
DPN900-064 O-Ring DPN239-150 Trigger
DPN276-012 Handle Upper DPN900-015 O-Ring
DPN901-021 Return Spring DPN239-083 Connect Tube
DPN900-065 O-Ring DPN276-050 Handle R,L
DPN276-013 MCS Valve Case DPN907-001 Socket Head Cap Screw
DPN276-014 MCS Valve Rod DPN239-086 Hexagon Nut
DPN900-066 O-Ring DPN276-051 Plug
DPN901-022 Spring DPN276-052 Chamber
DPN276-015 End Cap Adapter DPN907-009 Socket Head Cap Screw
DPN276-016 MCS Cap Front DPN276-063 Hook
DPN276-017 Slider FAN276-055 Collector (Assembly)
DPN900-067 O-Ring DPN276-056 Collector Lock Collar
DPN276-019 MCS Cap Tail DPN900-077 O-Ring
DPN900-068 O-Ring DPN276-057 Collector Lock
DPN276-018 Slider Pusher DPN903-001 Flat Head Cap Screw
DPN900-069 O-Ring DPN276-058 Collector Body
DPN276-020 End Cap DPN276-059 Collector Silencer
DPN276-061 Collar DPN276-060 Collector End Cap
DPN276-021 Collar Screw DPN276-062 Collector End
DPN276-023 Ejector Guide DPN239-152 Collector End Nut
DPN900-013 O-Ring DPN900-079 O-Ring
DPN907-002 Socket Head Cap Screw DPN276-080 Deflector Adapter
DPN276-024 End Cap Plate DPN900-022 O-Ring
FAN276-022 Ejector (Assembly) PRG510-56 Deflector
DPN900-045 O-Ring DPN276-053 R Joint Spacer
DPN239-047 Fill Screw DPN276-076 R Joint
DPN900-007 O-Ring DPN276-054 R Joint Adapter
DPN900-070 O-Ring DPN276-078 OS Slider
DPN900-036 O-Ring DPN900-078 O-Ring
DPN276-028 Sleeve Upper DPN276-077 OS Joint
DPN276-029 Restrictor DPN900-080 O-Ring
DPN902-002 Retaining Ring PRG540-46 Jaws
DPN276-030 Upper Plate PRN414 Nosepiece 4 size
DPN276-031 Sleeve Lower PRN514 Nosepiece 5 size
DPN276-085 Pan Head Screw PRN614 Nosepiece 6 size
FAN276-033 Handle Lower Assembly FAN276-064 Jaw Pusher (Assembly)
FAN276-036 Air Piston Assembly DPN239-139 HS Screw Key 4mm
DPN900-071 O-Ring FAN276-154 Air Line Assembly
FAN275-022 EXT Valve (Assembly) DPN276-155 Air Line Fitting
DPN275-025 EXT Valve Head DPN276-156 Hose Female Fitting
DPN901-008 EXT Valve Spring DPN276-157 Air Tube
DPN275-024 EXT Valve Case DPN276-158 Ear Clamp
DPN275-023 EXT Valve Rod
